Parking Lot Lighting Control System – Distribution Line

01_Sensor/Communication Module(DC-10PI,I)

Installed on both sides of LED lamp, it detects any movement of automobile or pedestrian and controls LED lamps to interwork sequentially.

Function	Sensing & Sequential Communication(DC-10PI) / Sequential Communication (DC10-I)
Sensing Range	At the height of 2.5m, within radius of 3m (DC-10PI)
Communication	Infrared transmission 38Khz
Connecting	7 Pin (DC-10PI) / 5 Pin (DC10-I)
Operating Humidity	10% ~ 90%
Indicators	Detecting, Red LED’s on / Communicating, Green LED’s on
Operating Temperature	-20°C ~ +55°C
Certifications	KC
Size	36(W) x 36(D) x 59.6(H) mm

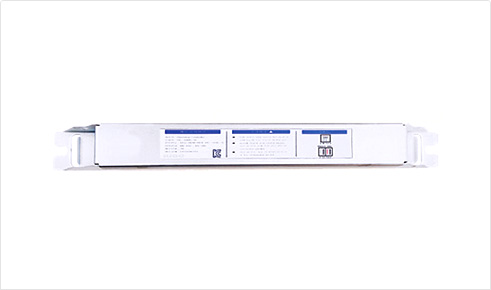

02_Dimming Controller(DC-10D)

This controller is for applying dimming system to existing SMPS with an algorithm which enables LED lamp can be dimmed smoothly and interworked sequentially.

Function	imming, Control sequential interworking
Control Range	OFF, 20%~100% 10 Steps Dimming
Control Way	Control PWM
Input/Output Power	DC 12V ~ 48V Max 1.5A
Operating Humidity	10% ~ 90%
Operating Temperature	-20°C ~ +55°C
Certifications	KC
Size	237.8(W) x 24(D) x 20.5(H) mm

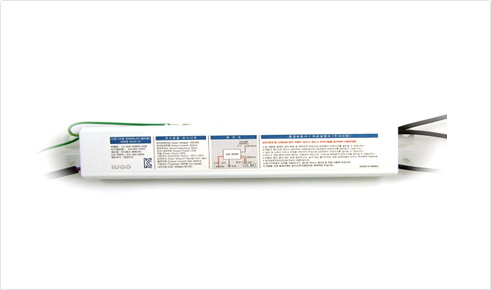

03_Communication Type SMPS(CA-10)

This SMPS includes an algorithm which enables LED lamp can be dimmed smoothly and interworked sequentially after removal of existing SMPS.

Function	SMPS , Dimming, Control sequential communication
Control Range/Way	OFF, 20%~100% 10 Steps Dimming / PWM
Power Factor / Efficiency	Above 95% / Above 85%
Input/Output Power/th>	AC 220V , 60/50Hz / DC48V
Humidity	10% ~ 90%
Operating Temperature	-20°C ~ +55°C
Certifications	KS
Size	237.8(W) x 24(D) x 20.5(H) mm

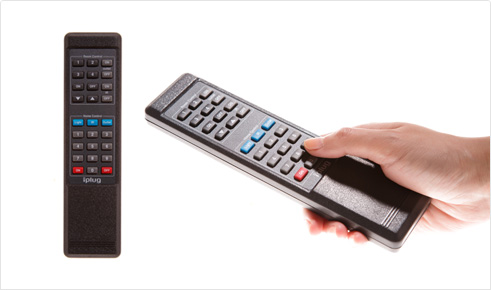

04_Remote Control(DC-10R)

Parking lot administrator can control LED lamps by individual and group

Function	Administrator controls the system directly
Radius	8m in a straight line
Communication	Infrared transmission 38Khz
Botton	27 Buttons
Function	Individual/group control
Intensity Sensing Set	Sensing on/off, Set intensity
Size	58(W) x 210(D) x 30(H) mm
